Vox Slave Driver - serial number 1001

"Vox Sound Limited", mid 1971

Continued from the previous page (general views of the exterior and chassis).

Pictures of a further "Slave Driver" along with examples of the related "Slave Master" and "Compact 100" are available here.

Thanks to Pete for the pictures below, and for the schematic drawings of the circuit, now here.

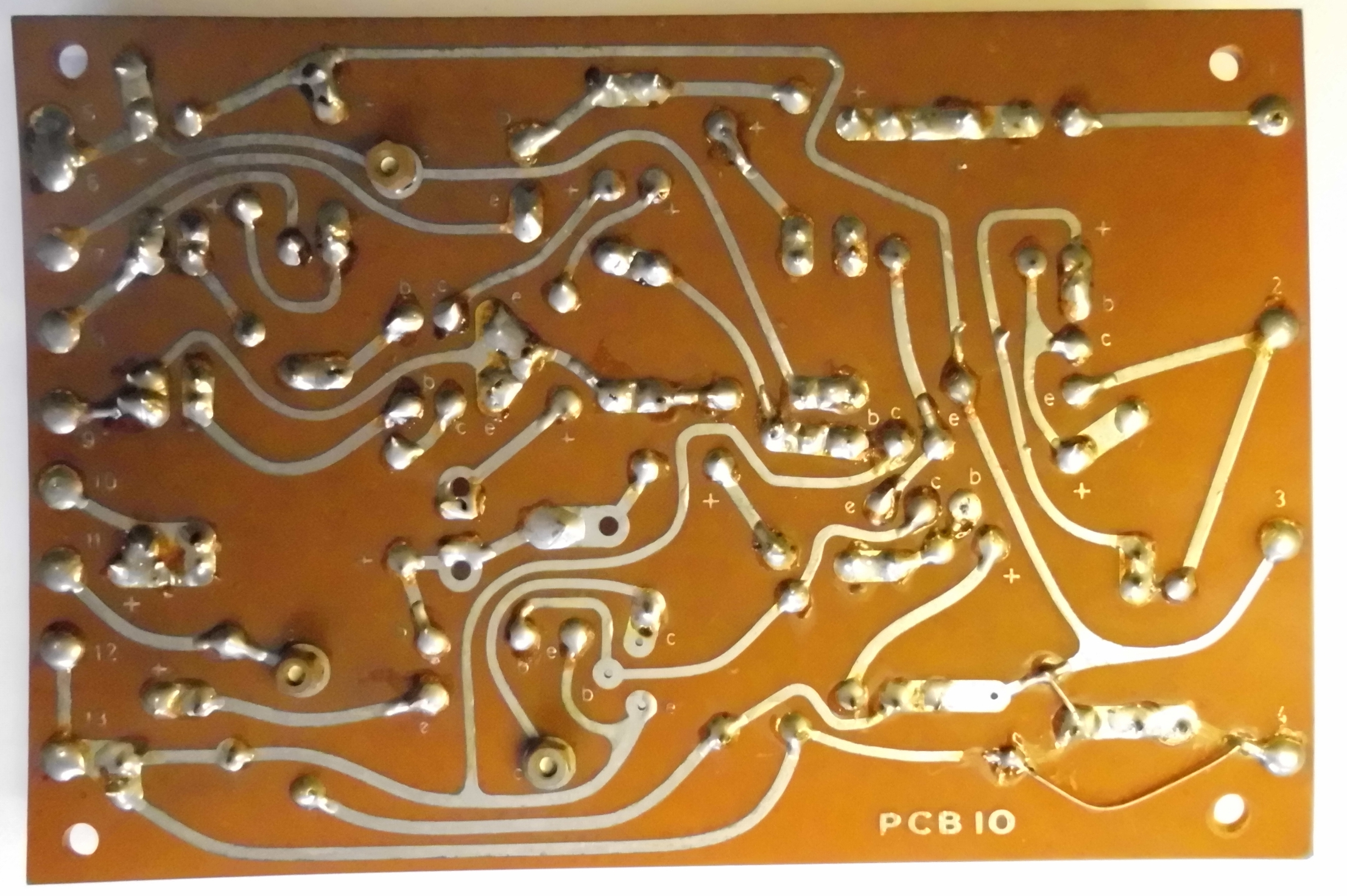

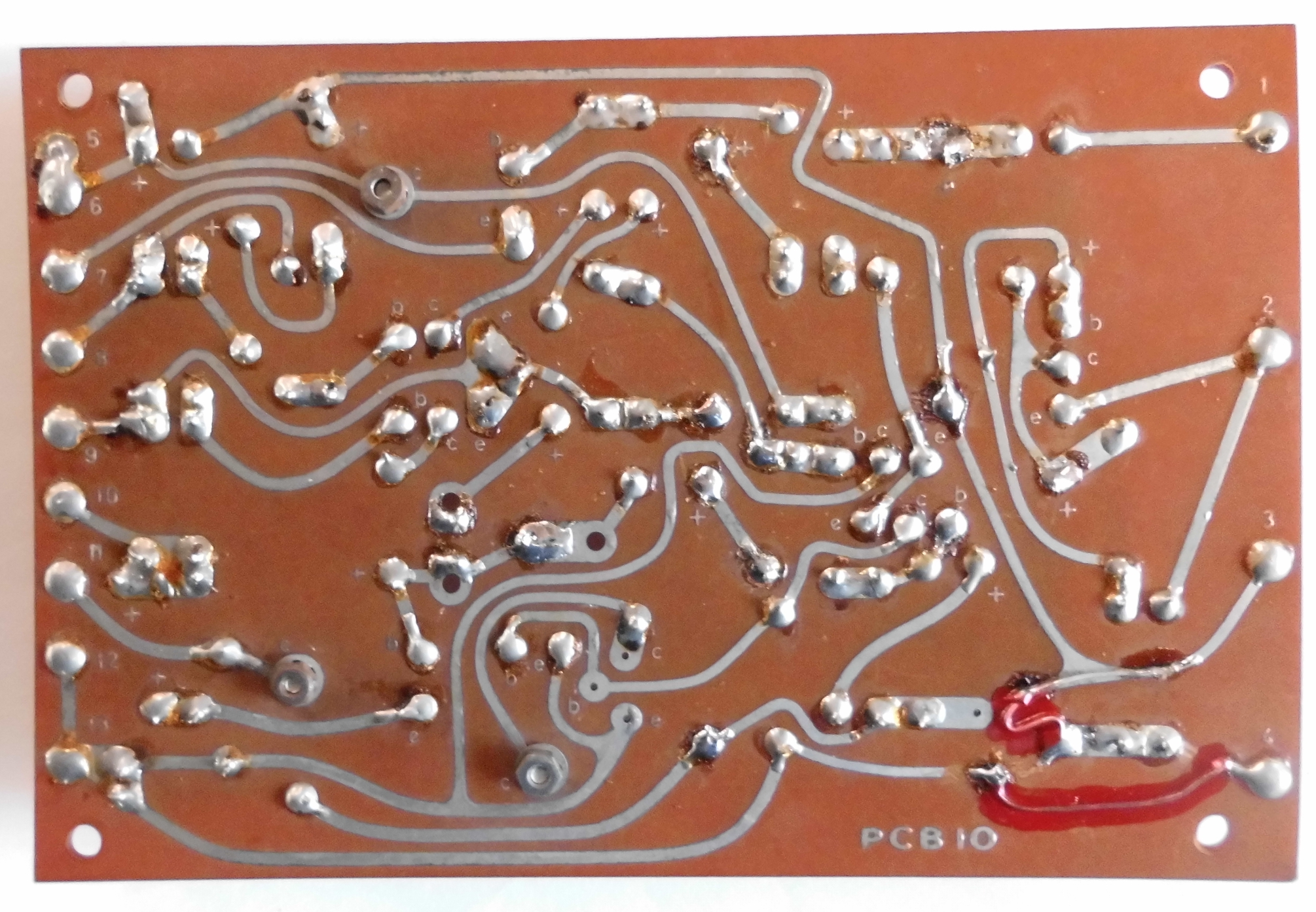

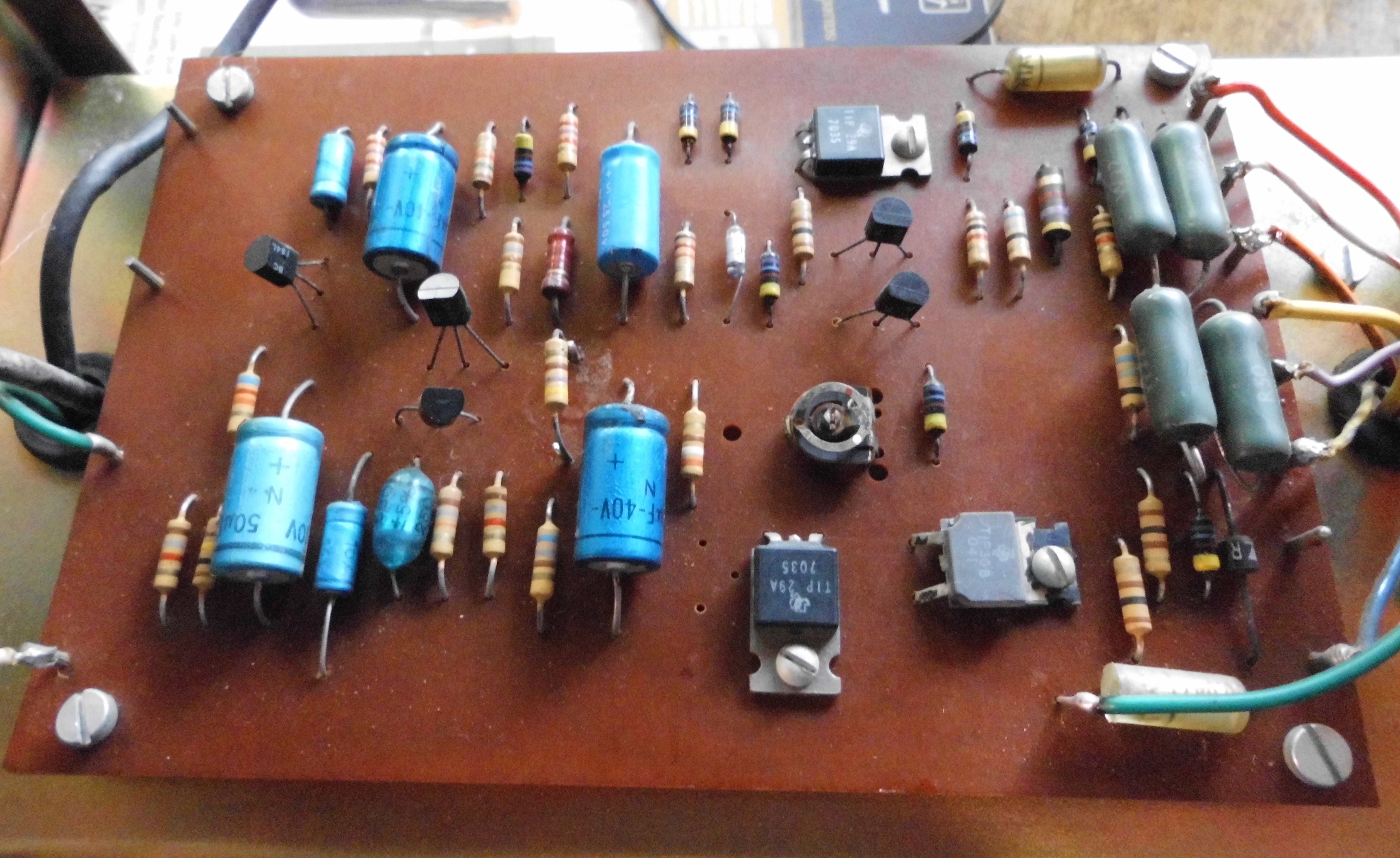

Main power board

The pictures above, its original state.

The pics above, returned to working order.

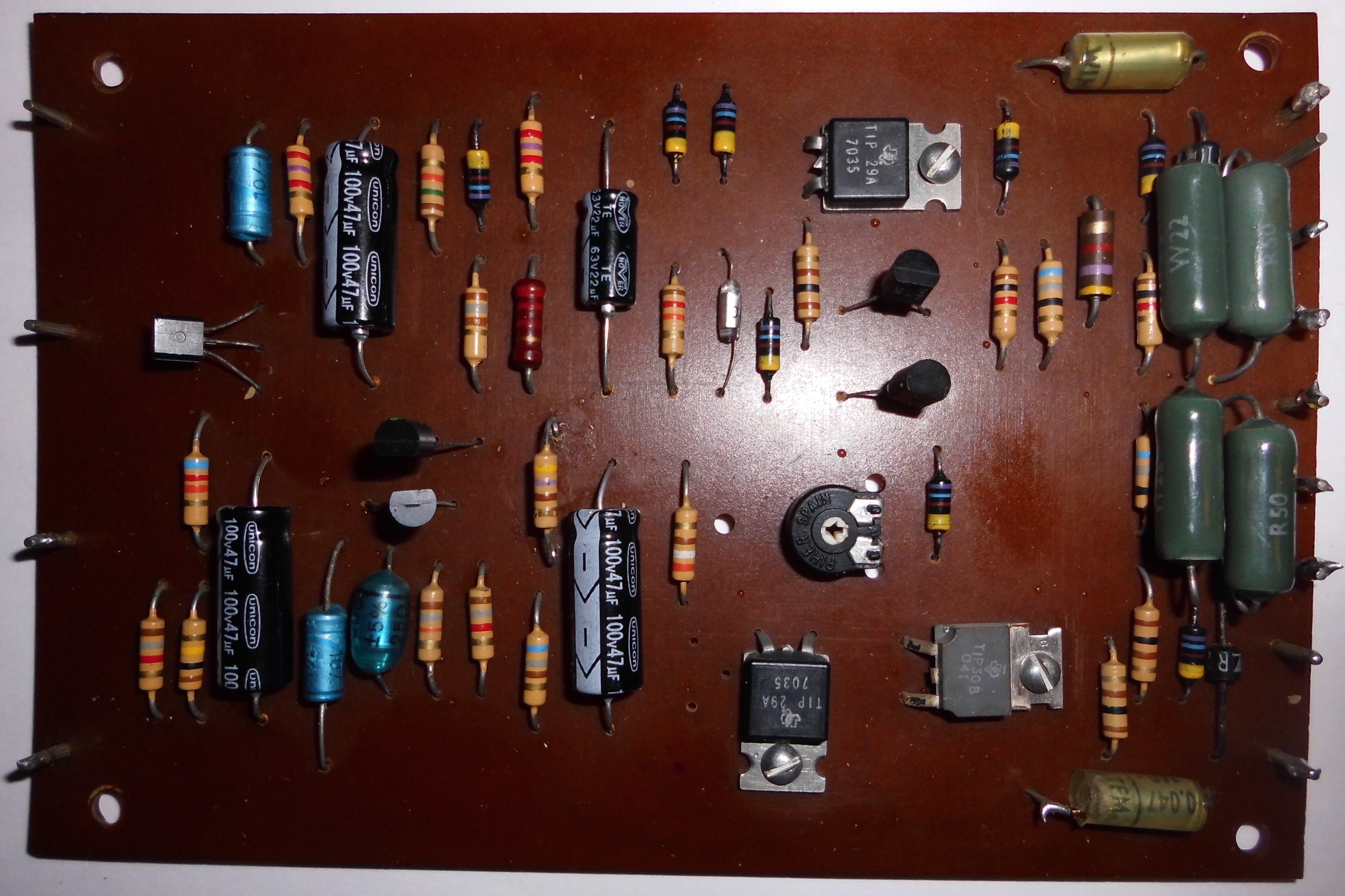

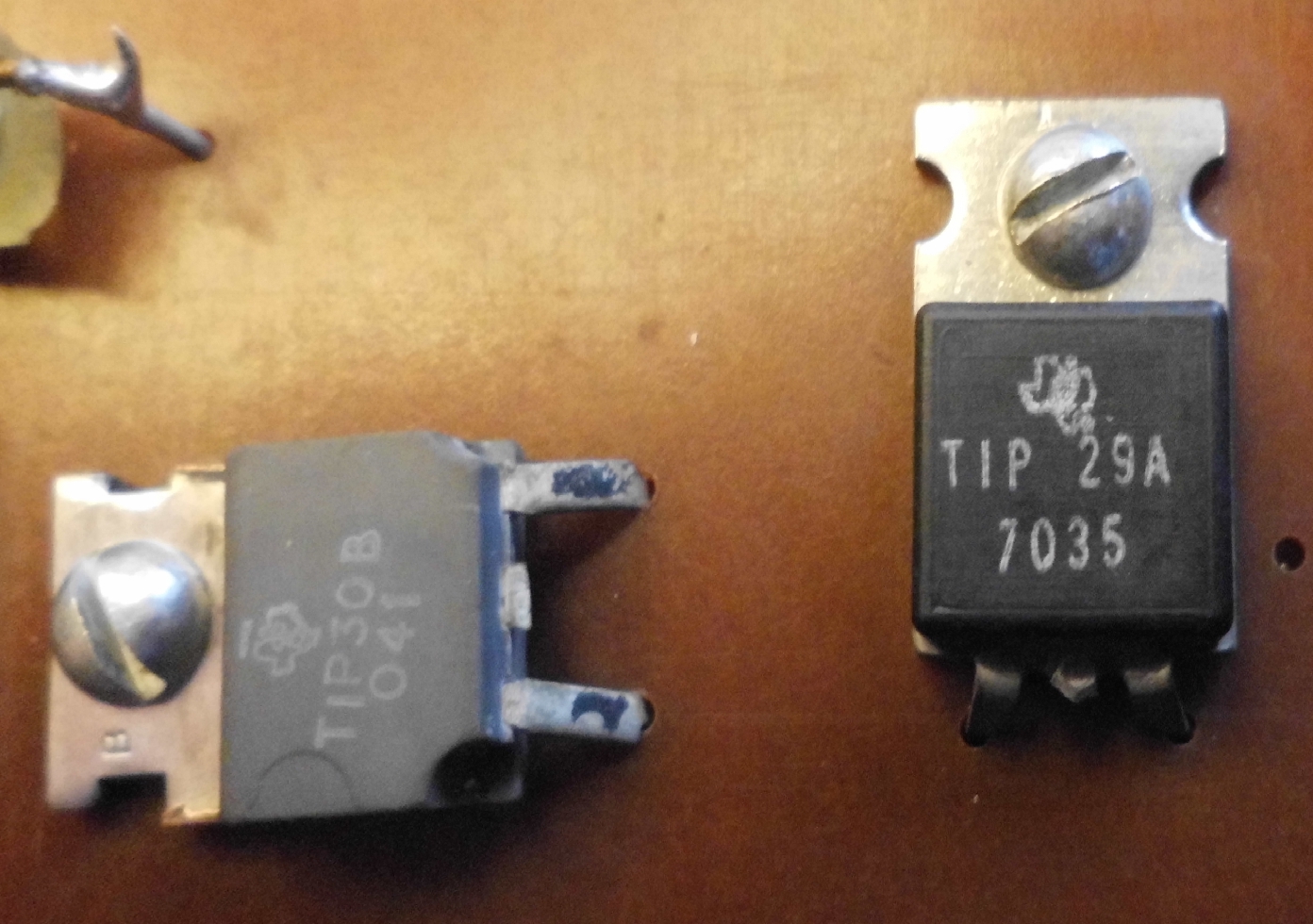

Output board

Original configuration of components.

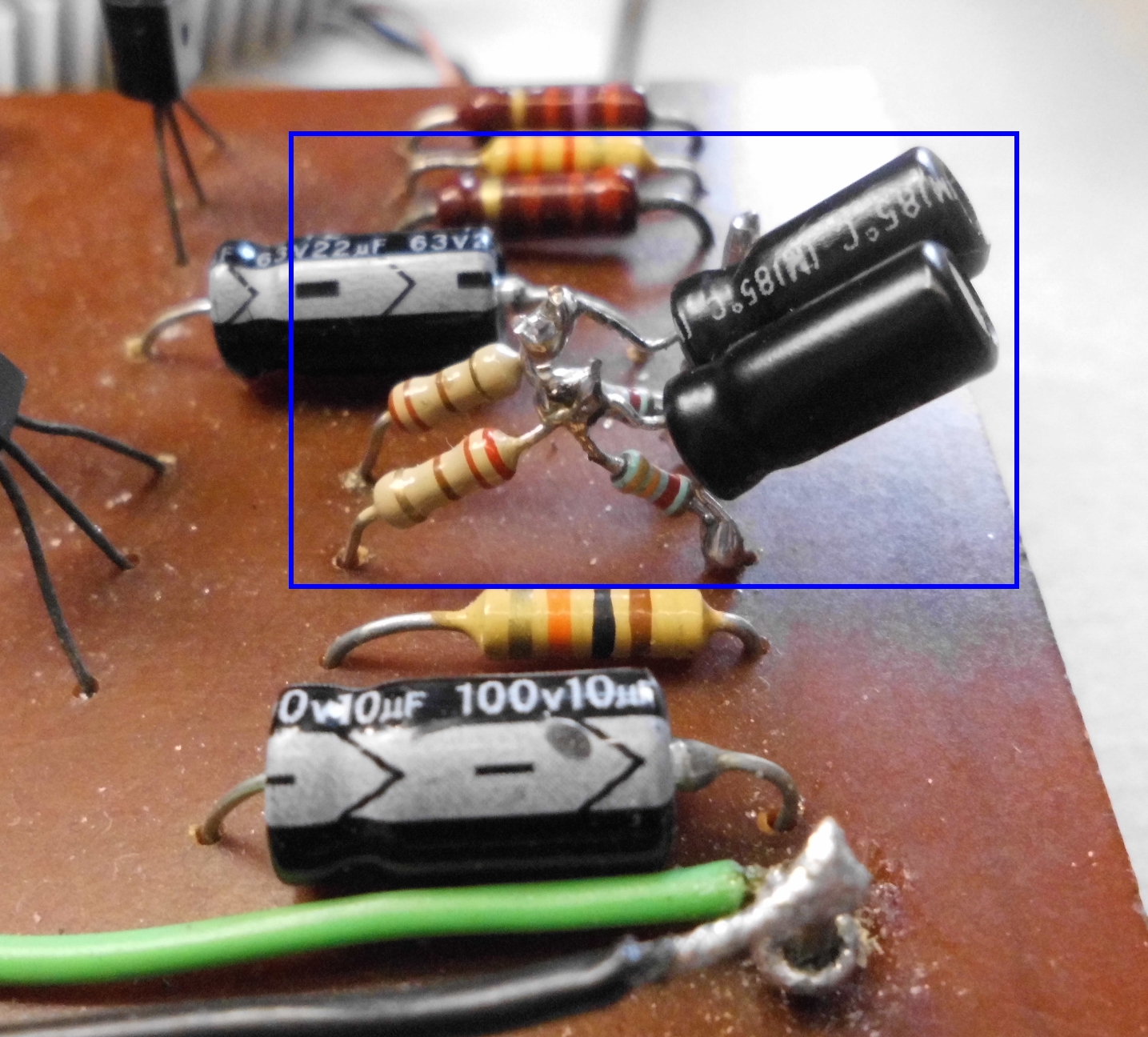

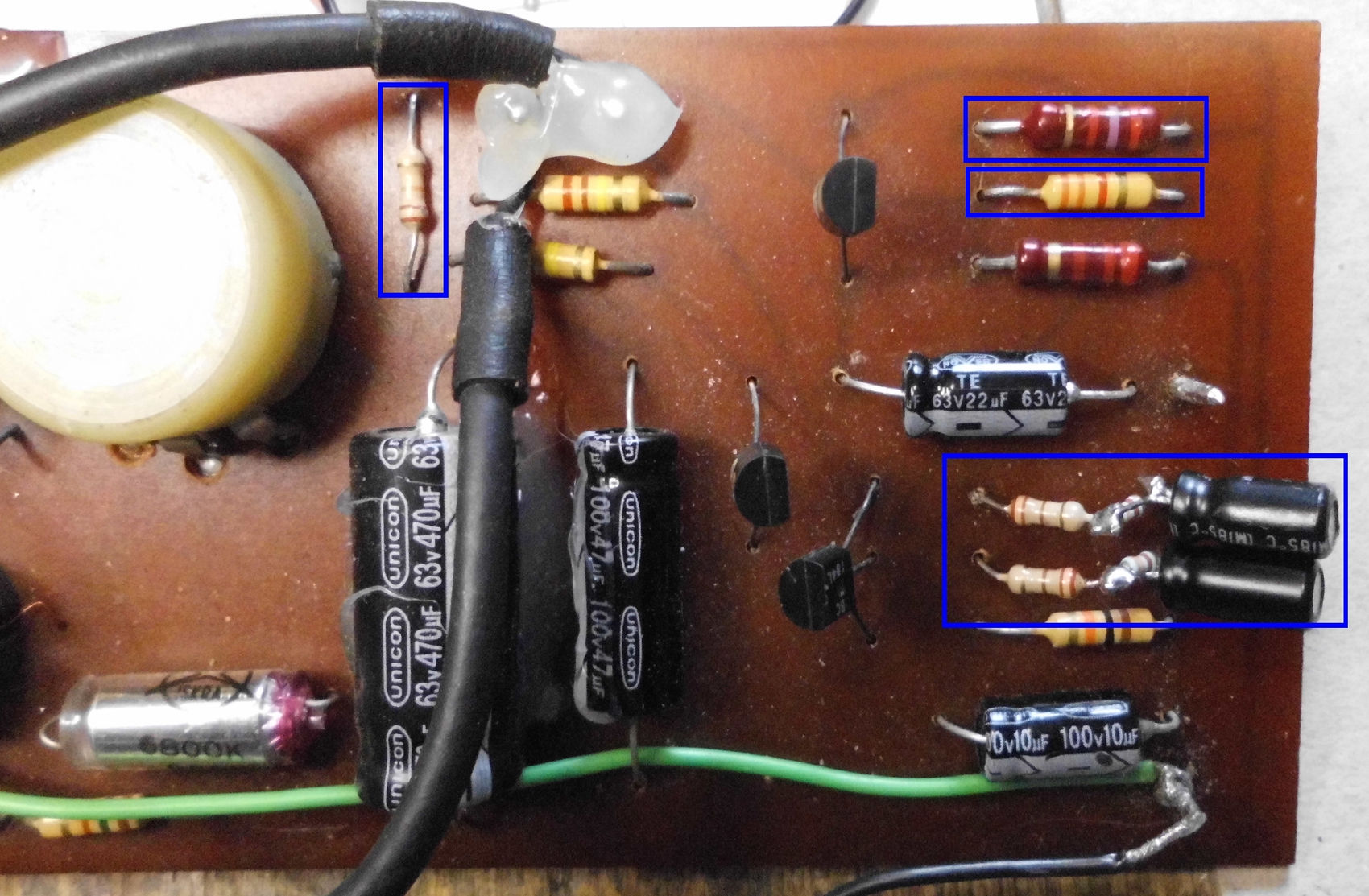

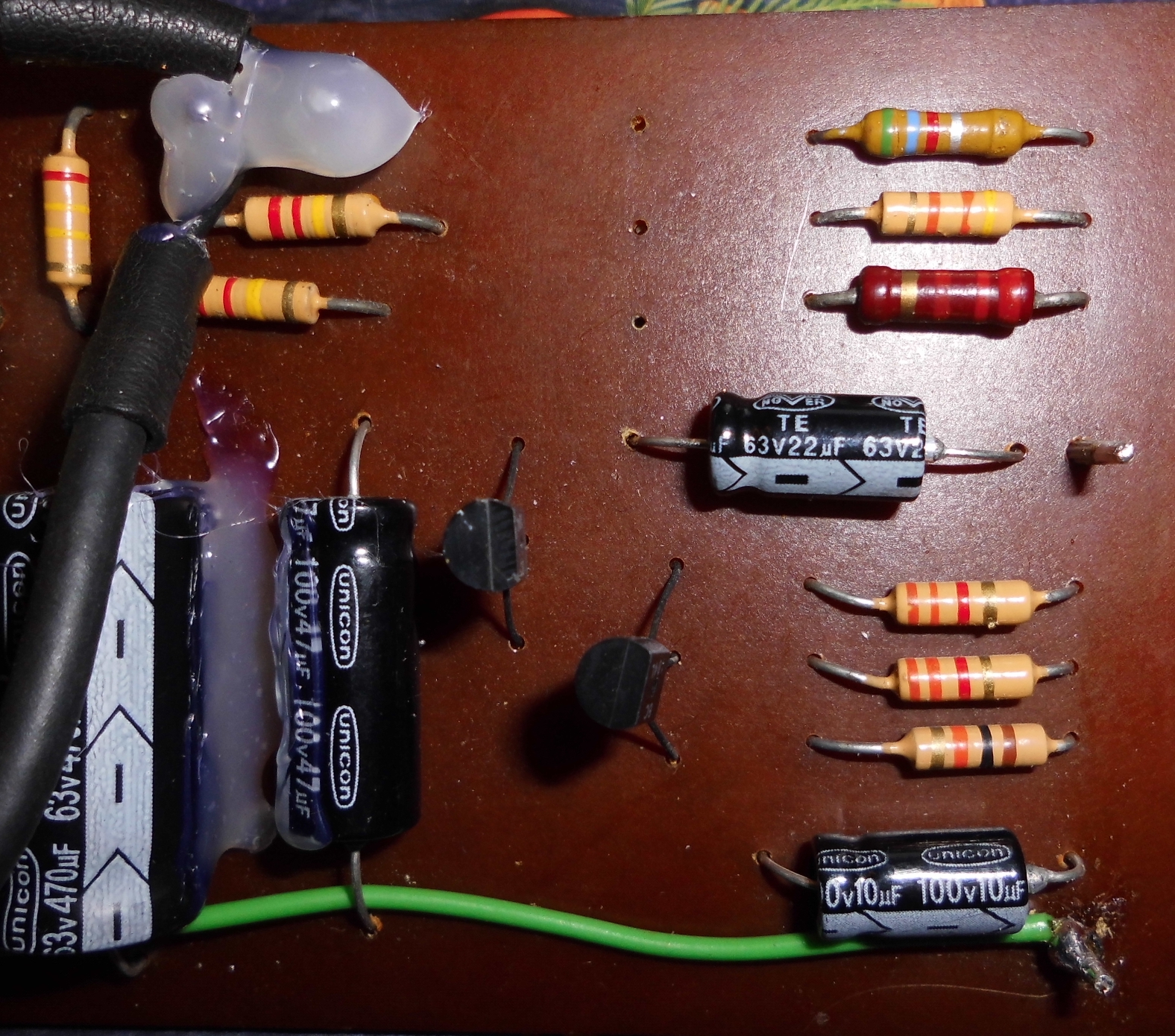

Above, the modified elements - to bias the power transistors in a better way.
